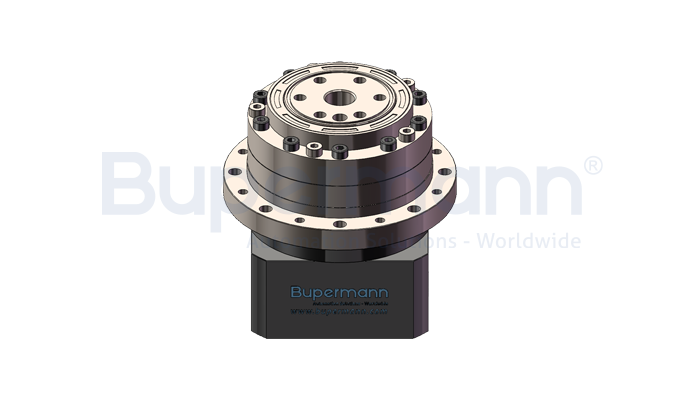

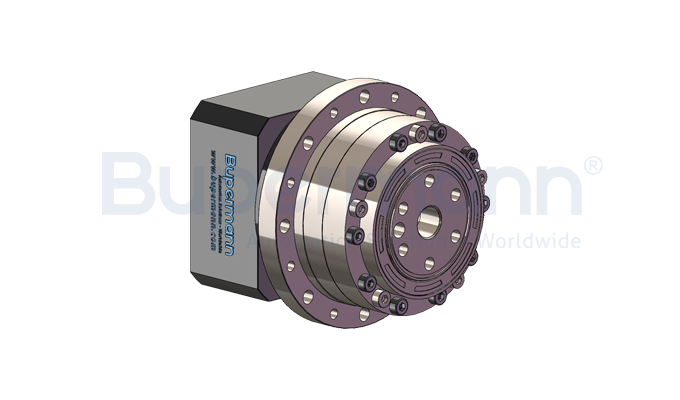

BPMCG070F High-precision micro reducer
Structural Dimensions
Find best reducerHave Questions About Our Reducers?
For more CAD data or 3D models, please contact us directly at Bupermann.
| Specifications | Unit | BPMCG030F | BPMCG050F | BPMCG070F | BPMCG080F | BPMCG110F | BPMCG140F | BPMCG160F |
|---|---|---|---|---|---|---|---|---|
| Reduction Ratio | i | 15,21,51 | 21,41 | 11,31,51,81,91 | 11,31,51,81 | 21,31,51,81,101 | 25,31,51,81,101,121 | 21,31,81,121 |
| Rated Output Torque | Nm | 10 | 15 | 80 | 100 | 125 | 250 | 350 |
| Acceleration/Braking Torque | Nm | 20 | 30 | 160 | 200 | 250 | 500 | 700 |
| Allowable Emergency Brake Torque | Nm | 30 | 45 | 240 | 300 | 380 | 800 | 1050 |
| Rated Input Speed | rpm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Max/Input Speed | rpm | 6000 | 6000 | 6000 | 6000 | 5500 | 4500 | 4000 |
| Tilting Stiffness | N-m/arcmin | 9 | 13 | 65 | 65 | 130 | 300 | 450 |
| Torque Stiffness | N-m/arcmin | 1.5 | 2.1 | 10.0 | 10.0 | 18.0 | 50.0 | 75.0 |
| Max. Radial Force | KN | 0.6 | 0.8 | 2.5 | 2.5 | 5.5 | 8.5 | 10.9 |
| Max. Axial Force | KN | 0.8 | 1.0 | 3.3 | 3.3 | 7.1 | 11.0 | 14.3 |
| Average Angular Transmission Error | arcsec | ±30 | ±30 | ±20 | ±20 | ±20 | ±20 | ±15 |
| Accuracy | arcmin | P0≤1、P1≤3、P2≤5 | P0≤1、P1≤3、P2≤5 | P0≤1、P1≤3、P2≤5 | P0≤1、P1≤3、P2≤5 | P0≤1、P1≤3、P2≤5 | P0≤1、P1≤3、P2≤5 | P0≤1、P1≤3、P2≤5 |
| Moment of Inertia | 10⁻⁴kgm² | 0.2 | 0.3 | 3.1 | 5.2 | 6.2 | 16 | 65 |
| Weight | Kg | 0.08 | 0.18 | 0.45 | 0.98 | 2.18 | 4.66 | 7.50 |
