- BPHDP Series heavy-duty rotating platform

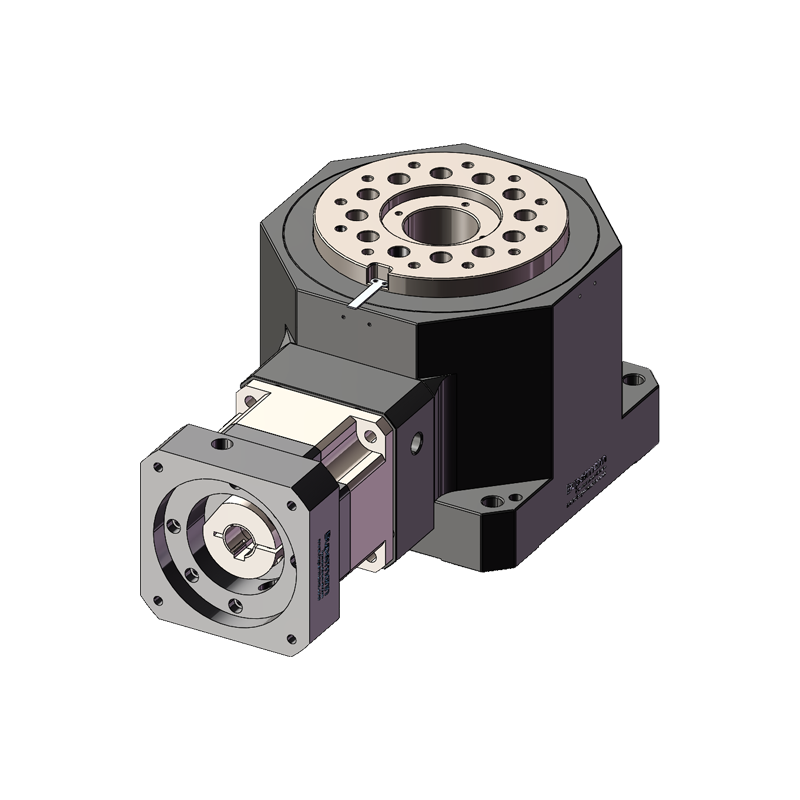

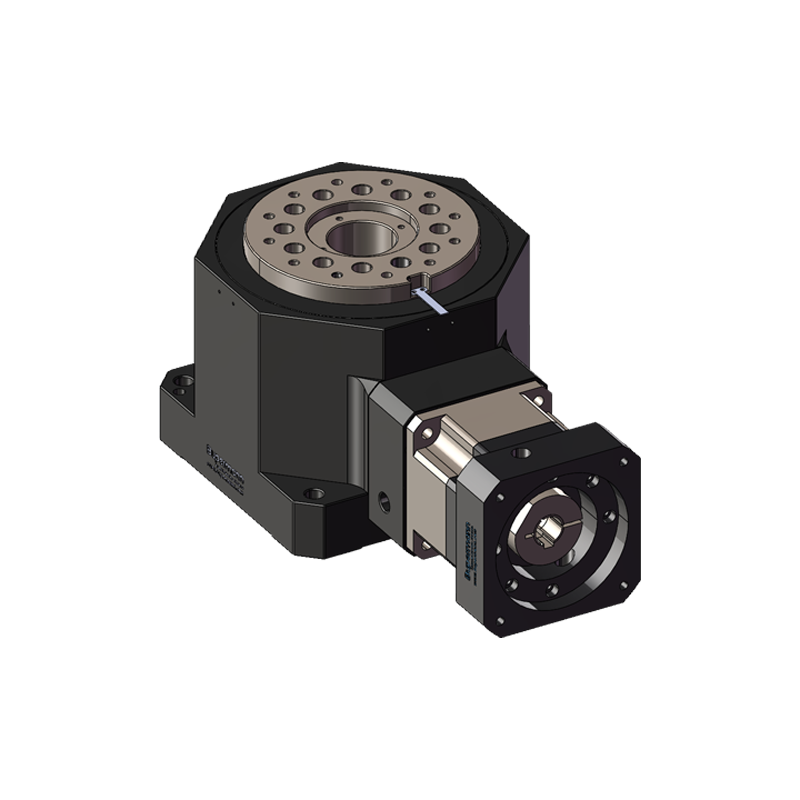

BPHDP170 heavy-duty rotating platform
Structural Dimensions
Find best reducerHave Questions About Our Reducers?
For more CAD data or 3D models, please contact us directly at Bupermann.
| Spec. | Reduction Ratio | i | BPHDP095 | BPHDP130 | BPHDP170 | BPHDP200 | |
|---|---|---|---|---|---|---|---|
| Rated Output Torque | NM | Single-stage L1 | 15 | 150 | 430 | 1350 | 2950 |
| 21 | 130 | 400 | 1200 | 2650 | |||
| 30 | 105 | 360 | 1000 | 2200 | |||
| Two-stage L2 | 60 | 150 | 430 | 1350 | 2950 | ||
| 75 | 150 | 430 | 1350 | 2950 | |||
| 105 | 150 | 430 | 1350 | 2950 | |||
| 120 | 150 | 430 | 1350 | 2950 | |||
| 150 | 150 | 430 | 1350 | 2950 | |||
| 210 | 130 | 400 | 1200 | 2650 | |||
| 300 | 105 | 360 | 1200 | 2200 | |||
| Maximum output torque | NM | 3 Factor Rated Torque | |||||
| Positioning Accuracy | Arc-min | Single-stage L1 | ≤ 2 | ||||
| Two-stage L2 | ≤ 4 | ||||||
| Repeatability Accuracy | Arc-sec | Single-stage L1 | ≤ 30 | ||||
| Two-stage L2 | ≤ 60 | ||||||
| Bearing structure | Crossed roller bearing | ||||||
| Allowable plate rotational speed | rpm | 200 （Intermittent operation） | |||||
| compatible with Servo Motor | W | 200-400 | 750-1.5K | 1K-3K | 2K-5K | ||
| For stepper motors | 57 Stepping | 86-110 Stepping | 110-130 Stepping | 130-150 Stepping | |||
| Allowable axial load | N | 7300 | 13500 | 19500 | 29600 | ||
| Allowable radial load | N | 7300 | 13500 | 19500 | 29600 | ||
| Design load | Kg | 50 | 150 | 480 | 1000 | ||
| Allowable inertia moment | Nm | 50 | 110 | 220 | 750 | ||
| Torsional stiffness | Nm/arcmin | 25 | 45 | 80 | 175 | ||
| Overturning Moment | Nm | 520 | 1420 | 2530 | 6300 | ||
| Accuracy Life | h | 20000h （Intermittent operation） | |||||
| Protection Class | IP | 54 | |||||
| Lubrication | Long-lasting lubrication | ||||||
| Mounting method | Arbitrary | ||||||
| Concentricity | mm | ≤ 0.01 | |||||
| Parallelism | mm | ≤ 0.01 | |||||
| Transmission Efficiency | % | Single-stage L1 | 95 | ||||
| Two-stage L2 | 90 | ||||||
| Noise | dB | ≤ 57 | ≤ 63 | ≤ 67 | ≤ 67 | ||
| Weight | Kg | Single-stage L1 | 7 | 17 | 36 | 46 | |
| Two-stage L2 | 7.6 | 19 | 39.2 | 52 | |||
