- BPHDR Series Right-angle hollow rotary platform

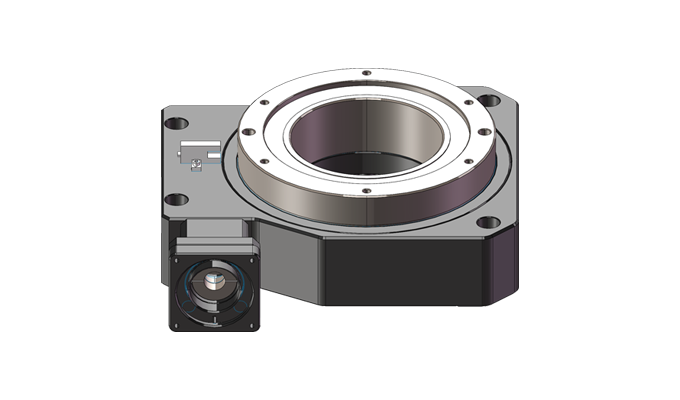

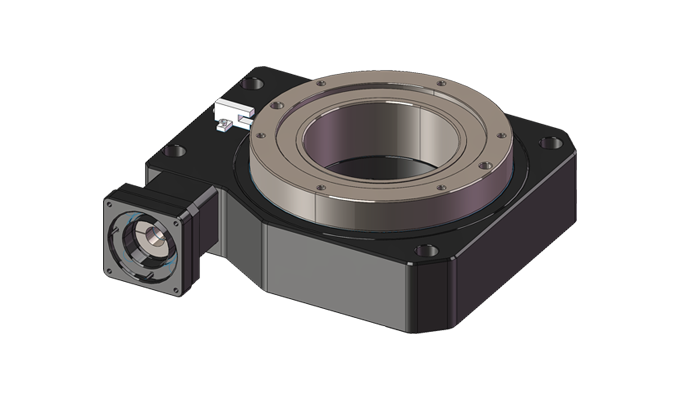

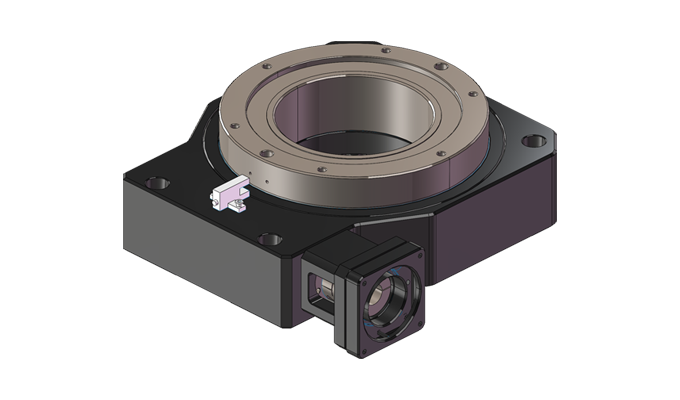

BPHDR170 Right-angle hollow rotating platform
Structural Dimensions
Find best reducerHave Questions About Our Reducers?
For more CAD data or 3D models, please contact us directly at Bupermann.
| Model | Unit | BPHDR050 | BPHDR090 | BPHDR170 |
|---|---|---|---|---|
| Hollow Bore | mm | 18 | 40 | 100 |
| Reduction Ratio | 90 | 90 | 90 | |
| 匹配电机功率 | W | 100 | 100 | 400 |
| Allowable Torque | Nm | 30 | 45 | 75 |
| Allowable inertia moment | Nm | 35 | 50 | 100 |
| Allowable plate rotational speed | rpm | 30 | 30 | 30 |
| Positioning Accuracy | arcmin | ±0.5 | ±0.5 | ±0.5 |
| Repeatability | arc.sec | ±5 | ||
| Accuracy Life | h | 20000 | ||
| Output Axial Load | N | 500 | 1500 | 1500 |
| 旋转平台平面度 | mm | ±0.005 | ||
| Concentricity | mm | ±0.005 | ||
| Protection Class | IP50 | |||
| Temperature | ||||
| Weight | Kg | 0.9 | 3 | 12 |
