- BPHP Series high-precision hollow rotary platform

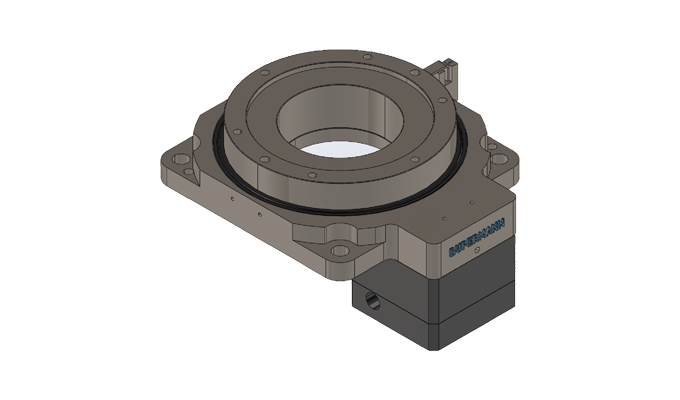

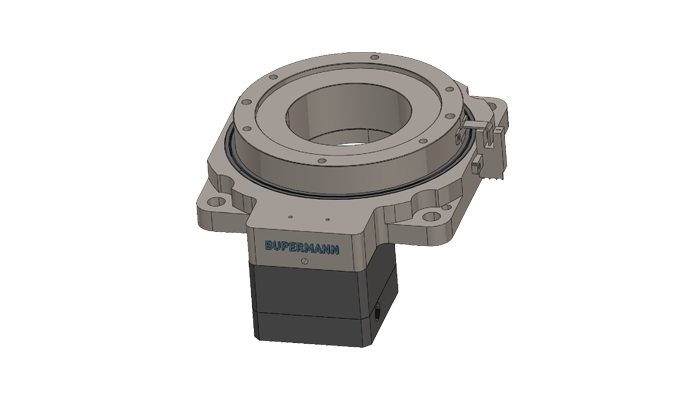

BPHP110 High-precision hollow rotary platform
Structural Dimensions
Find best reducerHave Questions About Our Reducers?
For more CAD data or 3D models, please contact us directly at Bupermann.
| Model | Unit | BPHP060 | BPHP085 | BPHP110 | BPHP130 | BPHP170 | BPHP200 | BPHP280 | BPHP370 | BPHP450 | BPHP680 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hollow Bore | mm | 28 | 33 | 62 | 62 | 100 | 100 | 150 | 220 | 250 | 250 | ||||||||
| Reduction Ratio | 5 | 10 | 5 | 10 | 10 | 18 | 10 | 18 | 10 | 18 | 10 | 18 | 10 | 18 | 10 | 10 | 10 | ||
| Allowable Torque | Nm | 5 | 5 | 45 | 35 | 47 | 35 | 55 | 55 | 72 | 50 | 90 | 72 | 135 | 135 | 200 | 300 | 400 | |
| Max. Output Speed(Intermittent) | min-1 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤50 | ≤50 | ≤30 | ||||||||
| Positioning Accuracy | arc.sec | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤60 | ≤60 | ≤60 | ||||||||
| Repeatability | arc.sec | ±10 | ±10 | ±10 | ±10 | ±10 | ±10 | ±10 | ±10 | ±10 | ±10 | ||||||||
| Platform Parallelism | mm | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.02 | ≤0.02 | ≤0.02 | ||||||||
| Platform Concentricity | mm | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.02 | ≤0.02 | ≤0.02 | ||||||||
| Output Axial Load | N | 200 | 400 | 800 | 1000 | 1500 | 2000 | 4000 | 8000 | 12000 | 40000 | ||||||||
| Accuracy Life | h | 20000h（Intermittent） | |||||||||||||||||
| Protection Class | IP40 | ||||||||||||||||||
| Weight | kg | 0.6 | 1.2 | 2 | 2.5 | 6.8 | 8.5 | 23.2 | 35 | 120 | 280 | ||||||||
