- BPHB Series wave-tooth hollow rotary platform

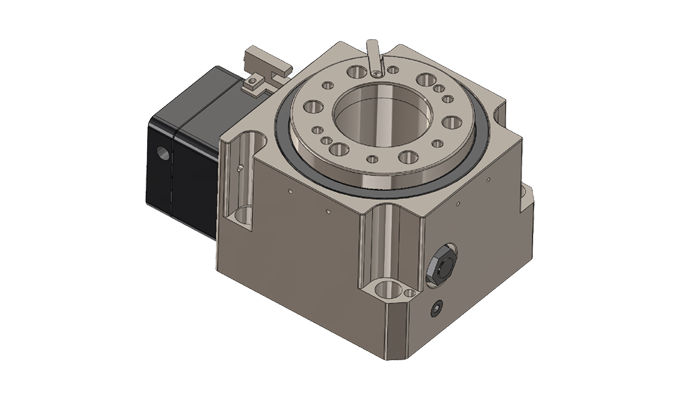

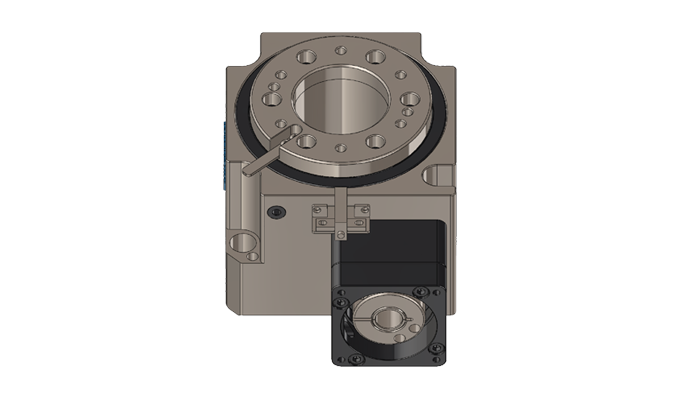

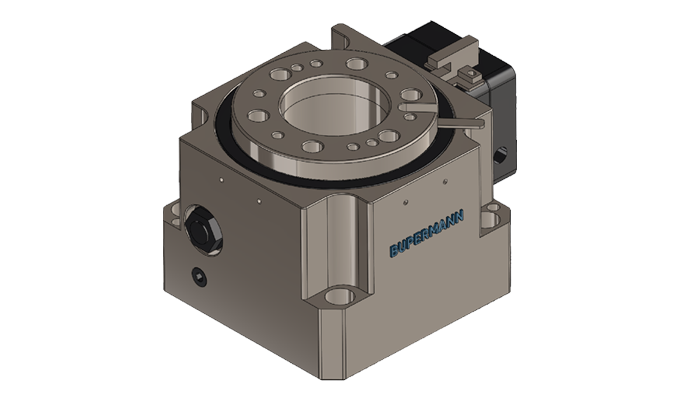

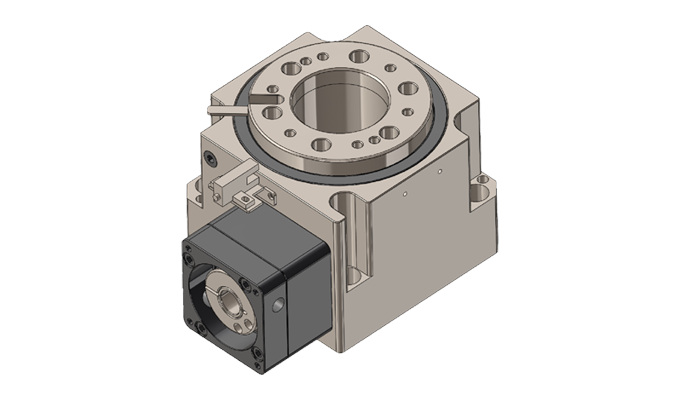

BPHB100H wave-tooth rotating platform
Structural Dimensions
Find best reducerHave Questions About Our Reducers?
For more CAD data or 3D models, please contact us directly at Bupermann.
| Specifications | Unit | BPHB100 | BPHB150 | BPHB060H | BPHB100H | BPHB150H | BPHB200H | BPHB040L | BPHB090L | BPHB140L | BPHB180L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Suitable Motor | 200W/400W | 750W | 50W/100W | 200W/400W | 750W | 1KW/2KW | 100W | 100W | 400W | 750W | |
| Reduction Ratio | 10 | 10 | 30 | 30 | 30 | 30 | 3 | 3 | 3 | 4 | |
| 旋转平台轴承 | Crossed roller bearing | 圆锥滚子轴承 | |||||||||
| Allowable Torque | Nm | 50 | 100 | 38 | 120 | 240 | 500 | 14 | 35 | 60 | 100 |
| Allowable inertia moment | Nm | 70 | 140 | 8 | 160 | 480 | 900 | 20 | 76 | 90 | 160 |
| 容许盘面输出转速 | r/min | 200 | 200 | 100 | 100 | 100 | 100 | 600 | 600 | 600 | 400 |
| Allowable axial load | N | 1800 | 4000 | 400 | 3000 | 7000 | 12000 | 250 | 1000 | 2000 | 4000 |
| Positioning Accuracy | 1arcmin | 1arcmin | ≤40arcsec | ≤40arcsec | ≤40arcsec | ≤40arcsec | 1arcmin | 1arcmin | 1arcmin | 1arcmin | |
| Repeatability Accuracy | arcsec | 0.5arcmin | 0.5arcmin | ≤10arcsec | ≤10arcsec | ≤10arcsec | ≤10arcsec | ≤10arcsec | ≤10arcsec | ≤10arcsec | ≤10arcsec |
| Rotary Platform Deviation | mm | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 |
| Parallelism | mm | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| Concentricity | mm | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 |
| Accuracy Life | h | 25000 | 25000 | 30000 | 30000 | 30000 | 30000 | 25000 | 25000 | 25000 | 25000 |
| Protection Class | IP54 | IP54 | IP65 | IP65 | IP65 | IP65 | IP50 | IP50 | IP50 | IP50 | |
| Weight | Kg | 3.0 | 7.6 | 0.9 | 8.5 | 18 | 59 | 1.2 | 3.3 | 6.5 | 18 |
