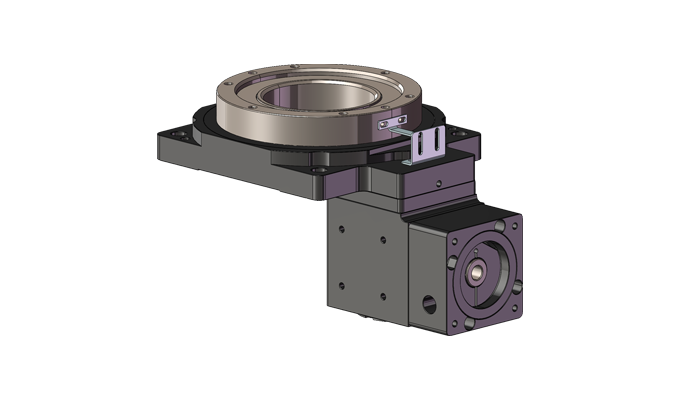

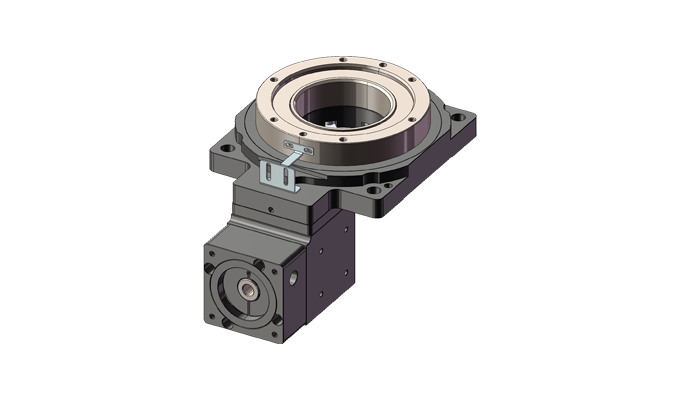

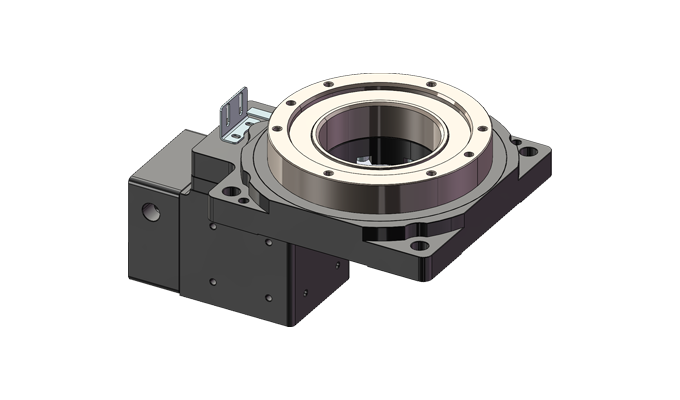

BPHNR028 Corner Hollow rotating platform
Structural Dimensions
Find best reducerHave Questions About Our Reducers?
For more CAD data or 3D models, please contact us directly at Bupermann.
| 新Model | Unit | BPHNR028 | BPHNR033 | BPHNR062 | BPHNR100 | BPHNR150 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hollow Bore | mm | 28 | 33 | 62 | 100 | 150 | |||||
| Reduction Ratio | 10/15/25/20/30/50 | 10/15/25/20/30/50 | 20/30/50 | 36/54/90 | 20/30/50 | 36/54/90 | 20/30/50 | 36/54/90 | |||
| Allowable Torque | Nm | 5 | 4 | 30 | 20 | 52 | 32 | 90 | 60 | 126 | 100 |
| Max. Output Speed(Intermittent) | min-1 | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 | |||||
| Allowable Inertia Load | Nm | 8 | 6 | 60 | 32 | 72 | 52 | 135 | 92 | 350 | 300 |
| Positioning Accuracy | arc.sec | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | |||||
| Repeatability | arc.sec | ±10 | ±10 | ±10 | ±10 | ±10 | |||||
| Platform Parallelism | mm | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | |||||
| Platform Concentricity | mm | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | |||||
| Output Axial Load | N | 280 | 500 | 2000 | 4000 | 7500 | |||||
| Accuracy Life | h | 20000h（Intermittent） | |||||||||
| Protection Class | IP40 | IP40 | IP40 | IP40 | IP40 | ||||||
| Weight | kg | 1.05 | 2.55 | 2.85 | 12 | 31 | |||||
