- BPHN Series hollow rotary platform

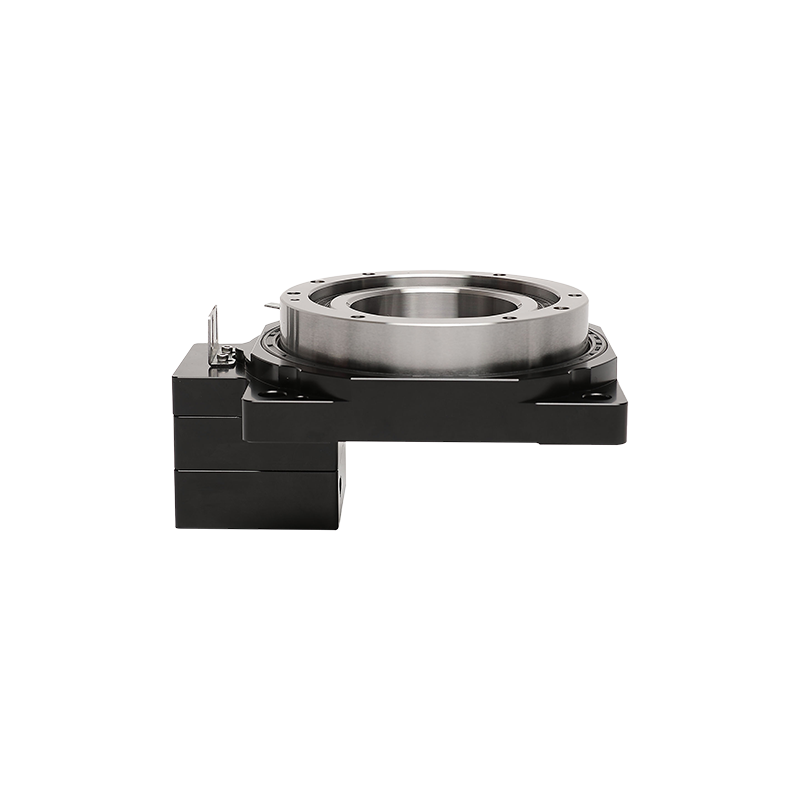

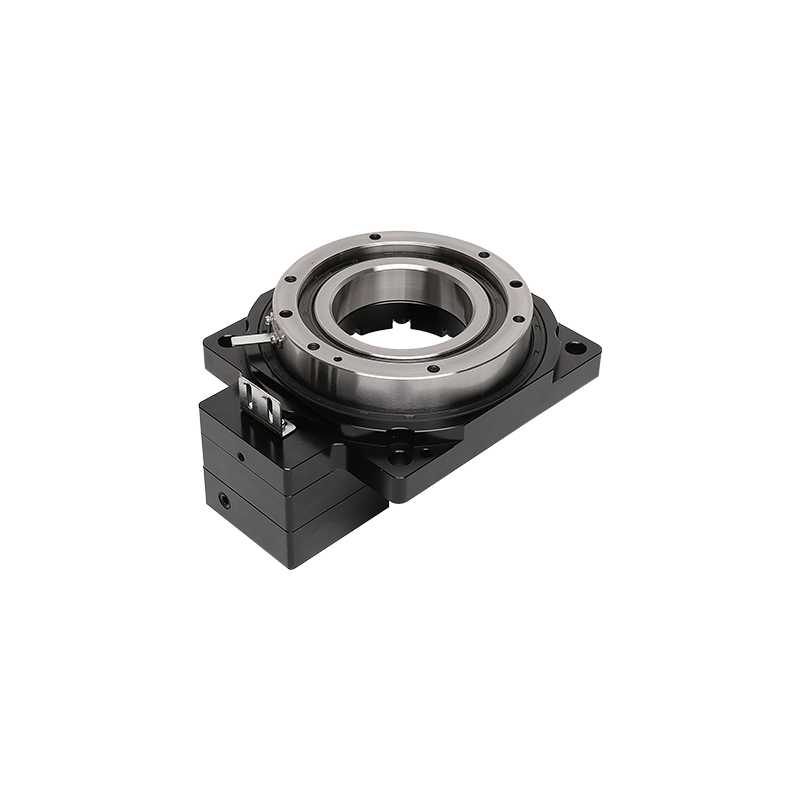

BPHN033 Hollow rotary platform
Structural Dimensions
Find best reducerHave Questions About Our Reducers?
For more CAD data or 3D models, please contact us directly at Bupermann.
| Specifications | Unit | BPHN028 | BPHN033 | BPHN062 | BPHN100 | BPHN150 | BPHN220 | BPHN250 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Suitable Motor | 50W/100WServo Motor 42mm Stepper Motor | 200W/400WServo Motor 57mm Stepper Motor | 200W/400WServo Motor 57/86mm Stepper Motor | 750WServo Motor 86mm Stepper Motor | 1KW/2KWServo Motor 110mm Stepper Motor | 2KW/3KWServo Motor | 3KW/5KWServo Motor | ||||||||
| Reduction Ratio | 1:5 | 1:10 | 1:5 | 1:10 | 1:5 | 1:10 | 1:10 | 1:18 | 1:10 | 1:18 | 1:10 | 1:18 | 1:10 | ||
| Allowable Torque | 5 | 4 | 30 | 20 | 47 | 35 | 52 | 32 | 90 | 60 | 126 | 100 | 456 | ||
| Allowable Speed | r/min | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |||||||
| Allowable Inertia Load | Nm | 8 | 60 | 65 | 72 | 135 | 350 | 600 | |||||||
| Allowable Axial Load | N | 260 | 500 | 1650 | 2000 | 4000 | 7000 | 15000 | |||||||
| Positioning Accuracy | arcmin | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 1 | |||||||
| Repeatability Accuracy | arcsec | ±10 | ±10 | ±10 | ±10 | ±10 | ±10 | ±10 | |||||||
| Rotary Platform Deviation | mm | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | |||||||
| Parallelism | mm | ≤0.01mm | ≤0.01mm | ≤0.01mm | ≤0.01mm | ≤0.01mm | ≤0.01mm | ≤0.02mm | |||||||
| Concentricity | mm | ≤0.01mm | ≤0.01mm | ≤0.01mm | ≤0.01mm | ≤0.01mm | ≤0.01mm | ≤0.02mm | |||||||
| Accuracy Life | h | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | 20000 | |||||||
| Protection Class | IP40 | ||||||||||||||
| Weight | Kg | 0.6 | 1.2 | 2.5 | 2.5 | 8.0 | 19.0 | 110 | |||||||
Direct Drive Servo Motor BPHN028-010
Direct Drive Servo Motor BPHN028-018
Direct Drive Servo Motor BPHN033-010
Direct Drive Servo Motor BPHN033-018
Direct Drive Servo Motor BPHN062-010
Direct Drive Servo Motor BPHN062-018
BPHN100-010
BPHN100-018
BPHN150-010
BPHN150-018
BPHN250-010
