- BPHT Series heavy-duty hollow rotary platform

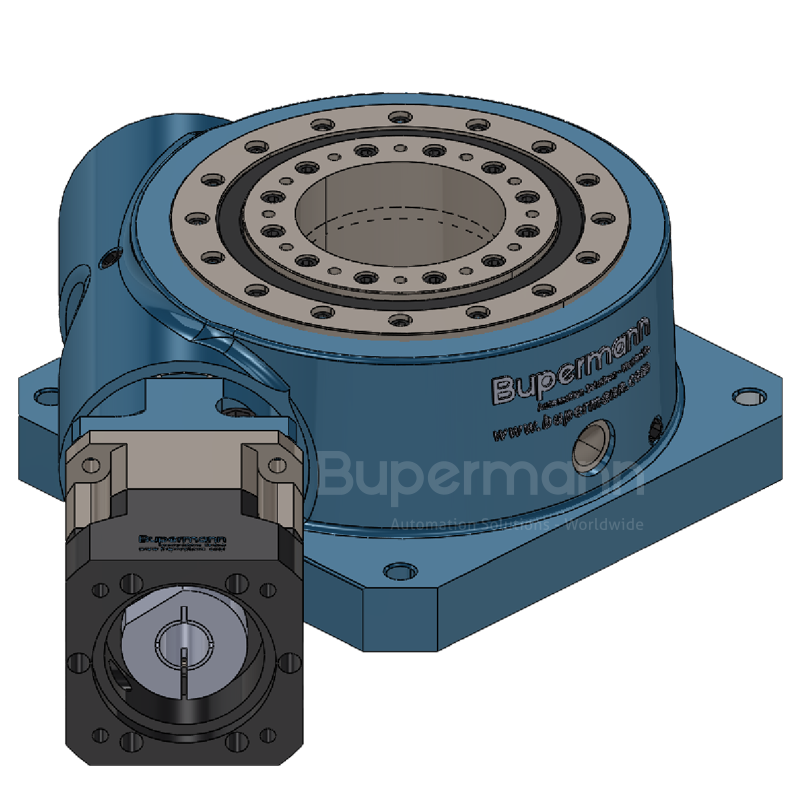

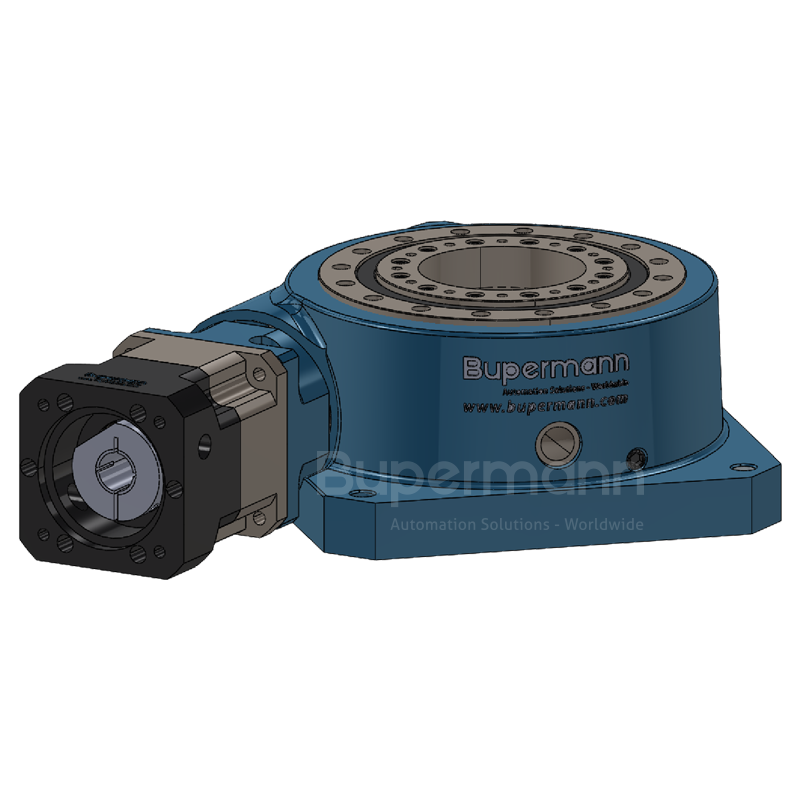

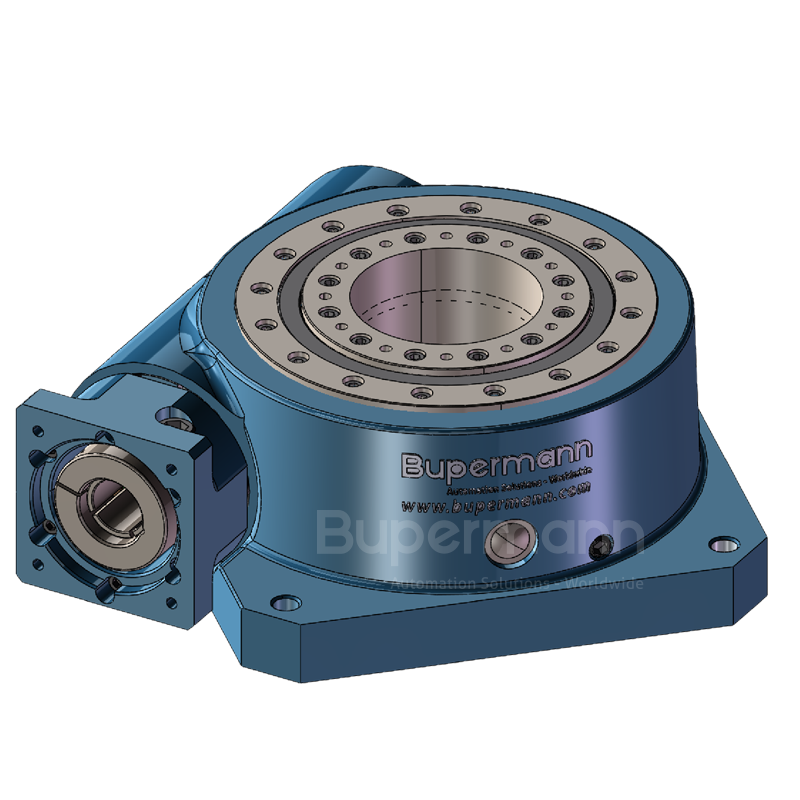

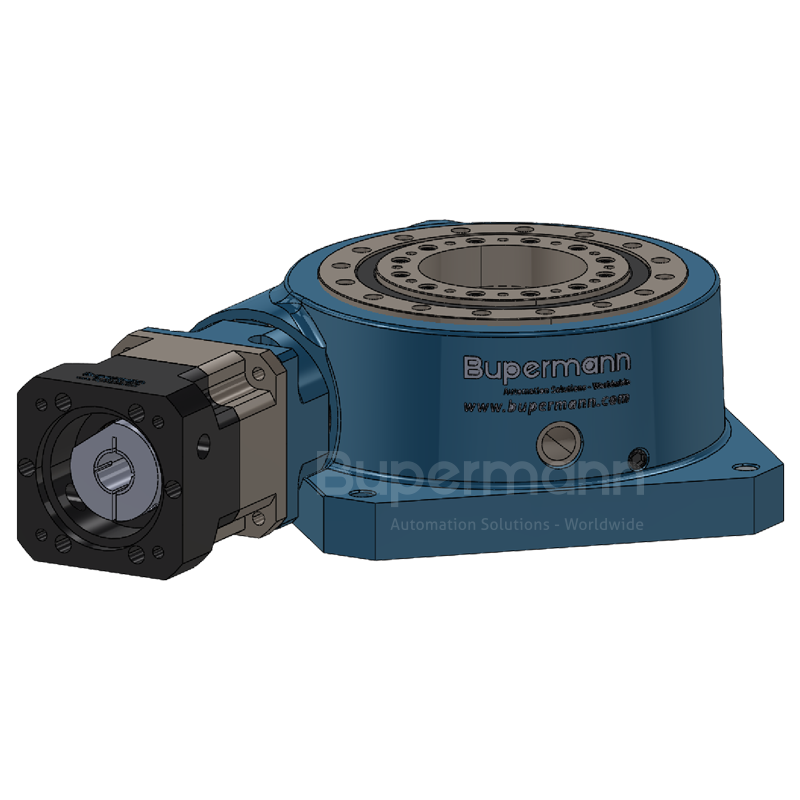

BPHT080 heavy-duty hollow rotating platform
Structural Dimensions
Find best reducerHave Questions About Our Reducers?
For more CAD data or 3D models, please contact us directly at Bupermann.
| Model | Unit | BPHT055 | BPHT060 | BPHT080 | BPHT100 | BPHT150 | BPHT200 | BPHT320 | BPHT520 | BPHT670 | BPHT1120 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Load Capacity（Horizontal Mounting） | Kg | 40 | 80 | 150 | 200 | 500 | 1500 | 2500 | 4000/6000 | 10T | 18T |
| Platform Size | mm | 55 | 95 | 120 | 130 | 185 | 360 | 530 | 750 | 1100 | 1600 |
| Hollow Bore | mm | 25 | 62 | 80 | 100 | 150 | 200 | 320 | 522 | 670 | 1120 |
| Reduction Ratio | 15 | 20 | 24 | 20 | 20 | 40 | 60 | 60 | 72 | 90 | |
| Custom Reduction Ratio | Custom high reduction ratio according to load requirements(with precision helical planetary gearbox) | ||||||||||
| Max. Start-Stop Torque | Nm | 70 | 162 | 225 | 585 | 1005 | 2821 | 8560 | 15500 | / | / |
| Static Output Torque | Nm | 105 | 258 | 375 | 850 | 1680 | 4017 | 13560 | 26500 | / | / |
| Max. Output Shaft Speed | min-1 | 200 | 150 | 100 | 100 | 80 | 36 | 30 | 20 | 20 | 20 |
| Rated Output Shaft Speed | min-1 | 60 | 40 | 35 | 35 | 30 | 20 | 15 | 10 | 10 | 10 |
| Positioning Accuracy | arc.sec | ±8 | ±8 | ±8 | ±8 | ±10 | ±10 | ±20 | ±20 | ±30 | ±30 |
| Repeatability | arc.sec | ±5 | ±5 | ±5 | ±5 | ±6 | ±6 | ±6 | ±6 | ±10 | ±10 |
| Output Shaft Axial Runout | mm | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.02 | ±0.02 | ±0.02 |
| Output Shaft Radial Runout | mm | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.02 | ±0.02 | ±0.02 |
| Allowable Radial Load of Output Shaft | N | 2100 | 3210 | 3500 | 4500 | 7150 | 12000 | 16500 | 26400 | 106000 | 150000 |
| Output Axial Load | N | 3200 | 7250 | 7850 | 8650 | 16500 | 26000 | 34200 | 55400 | 200000 | 300000 |
| Input Shaft Friction Torque | Nm | 1 | 2 | 3 | 3 | 3.2 | 6 | 8 | 10 | / | / |
| Overturning Moment | Nm | 300 | 420 | 584 | 625 | 1085 | 3749 | 13354 | 30000 | 96000 | 100000 |
| Weight | kg | 8.5 | 15 | 17 | 20 | 40 | 120 | 200 | 300 | / | / |
